FLY-1202 – Flyaway

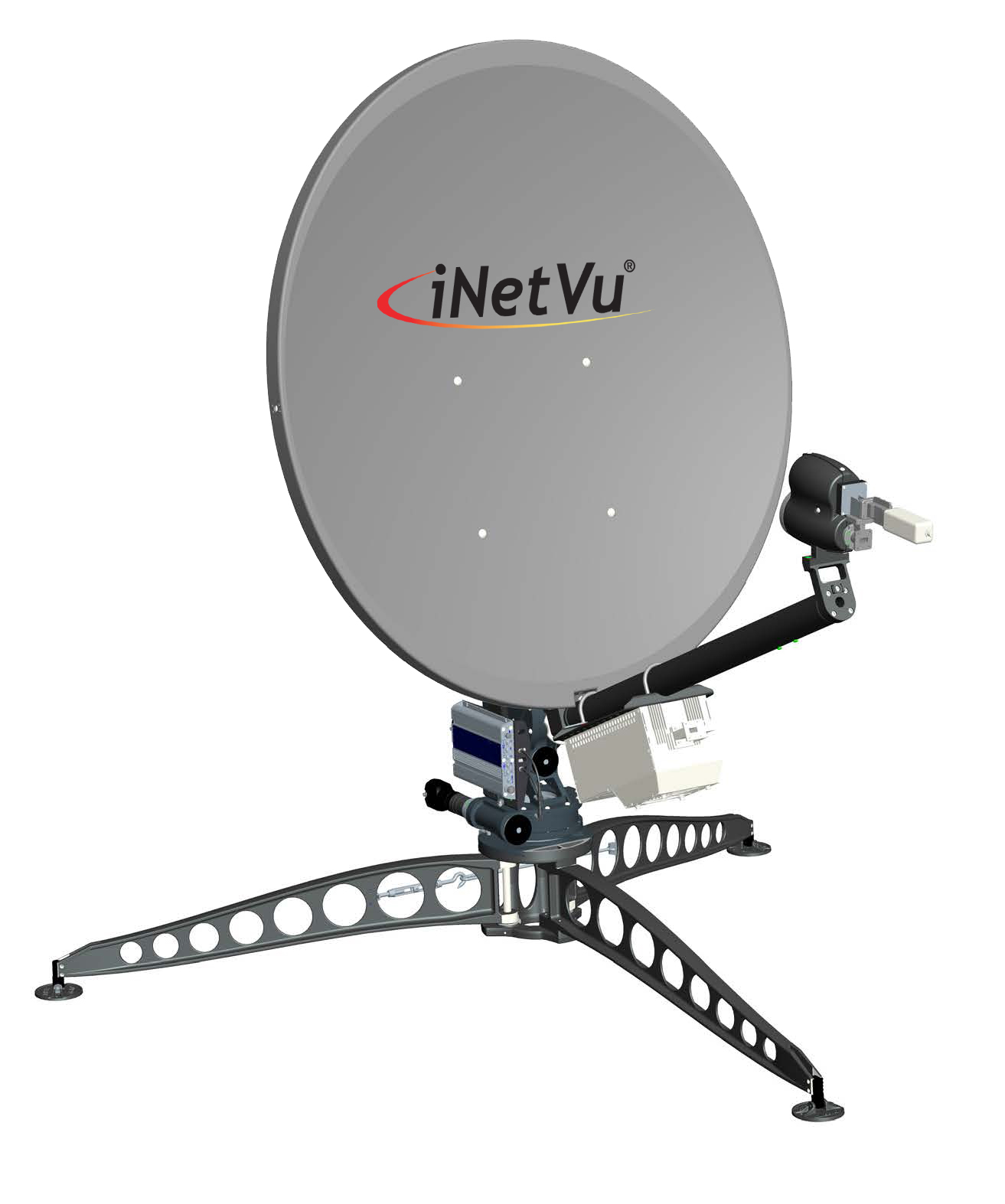

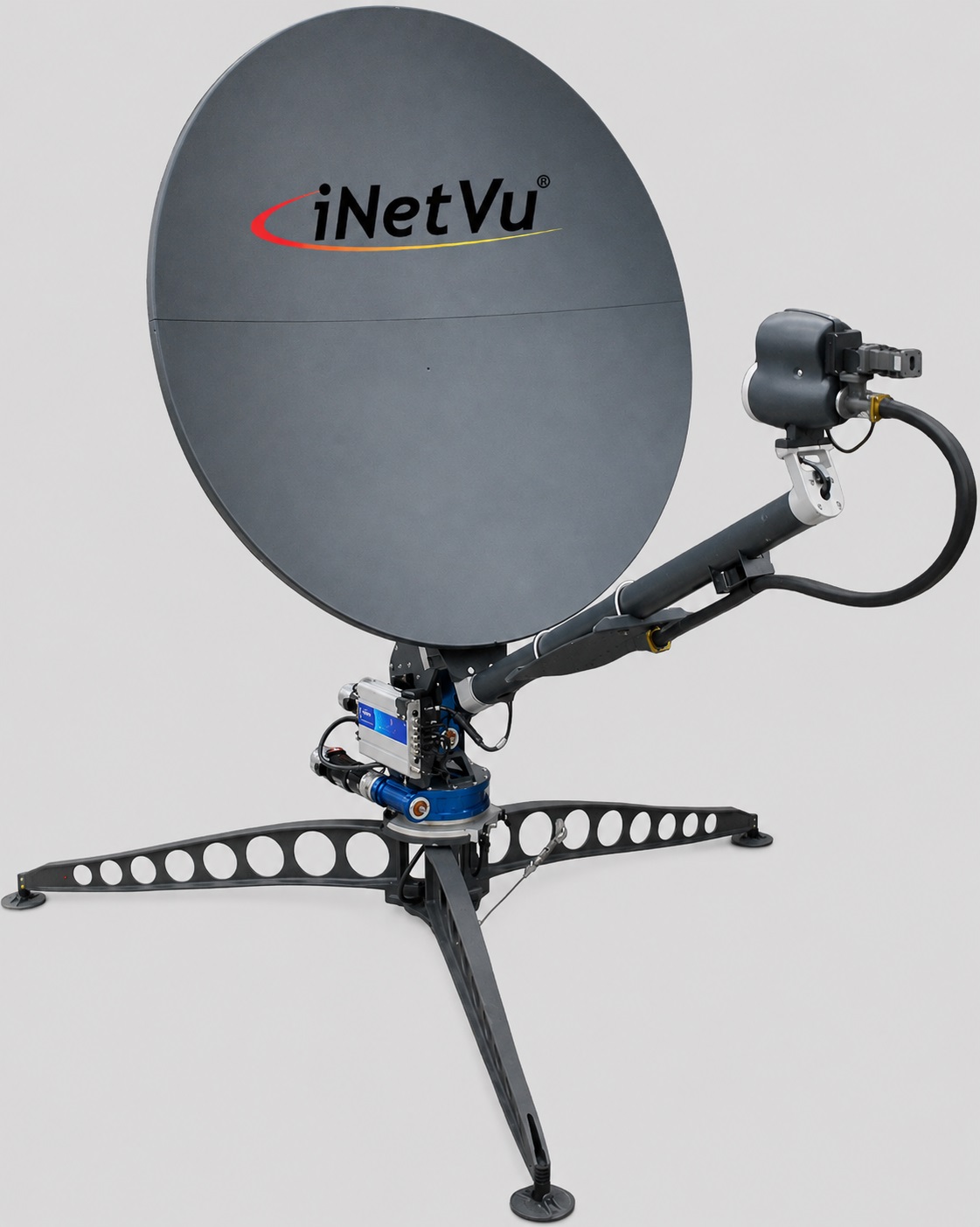

The iNetVu ® 1.2m Flyaway Antenna System is a highly portable, self-pointing, auto-acquire unit that is configurable with the iNetVu® 7710 Controller and can be assembled in less than 15 minutes by one person. The antenna features a 2-piece segmented glass fibre reinforced reflector with compact pedestal and is designed to be cost-effective while providing exceptional performance in a light weight package. Field Upgradable to Ka.

  • One button auto-pointing controller
  • 3 Axis motion (Ku-band), 2 axis (X-band)
  • Airline transportable
  • Supports manual control when required
  • Designed to work with the iNetVu®  7710 Controller
  • Captive hardware / fasteners
  • 1.2m off set, prime focus, 2-piece thermoset molded  reflector
  • Supports General Dynamics Series 3122 1.2m antenna
  • No tools required for assembly / disassembly
  • Less than 15 minutes assembly time, one person job
  • Elevation-over-azimuth pedestal provides excellent stiffness characteristics and convenience for the user
  • Eutelsat / Intelsat compliant
  • Compact packaging, 4 ruggedized shipping cases
  • Minimal maintenance required
  • Standard 2 year warranty
